Skid Steer Cold Planer

Cold Planer

McLaren’s Skid Steer Cold Planer is a powerful and durable attachment used to achieve a smooth, even surface for repairing or resurfacing pavement. Also, it is widely used for asphalt and concrete milling.

McLaren’s Skid Steer Asphalt Planers are adaptable to a wide variety of job environments including road repair, bridge deck repair, landscaping, municipal, shopping center and utility work. Our Skid Steer Planer is easy to maneuver around manhole and storm drains; excellent for bridge decks where heavier, dedicated planers are not allowed. Hydraulic side-shift and depth control allows skid steer operators to shift it up to 24” for maneuvering close to buildings and other obstacles from the comfort of your seat.

McLaren’s Skid Steer Cold Planer is constructed using an industrial build with best-in-class materials. Featuring a Bosh Rexroth Piston Motor, 30-gallon water tank with electronic sprayers for dust control and Kennametal all carbide picks for lasting durability.

Cold Planer

One major feature that separates McLaren’s Asphalt Planer from the competition is our Integrated 30 Gallon Water Tank. This gives the operator the ability to conveniently swap machines without needing to set up an external water system.

Overall, our Cold Planer is the perfect attachment for your asphalt repair needs. Designed to plane up to 6” in depth and handle widths up to 40”. Its combination of features makes it a great choice for those needing to plane asphalt as quickly and efficiently as possible.

Available sizes: 16”, 18” and 40” Wide

Cold Planer

Key Features

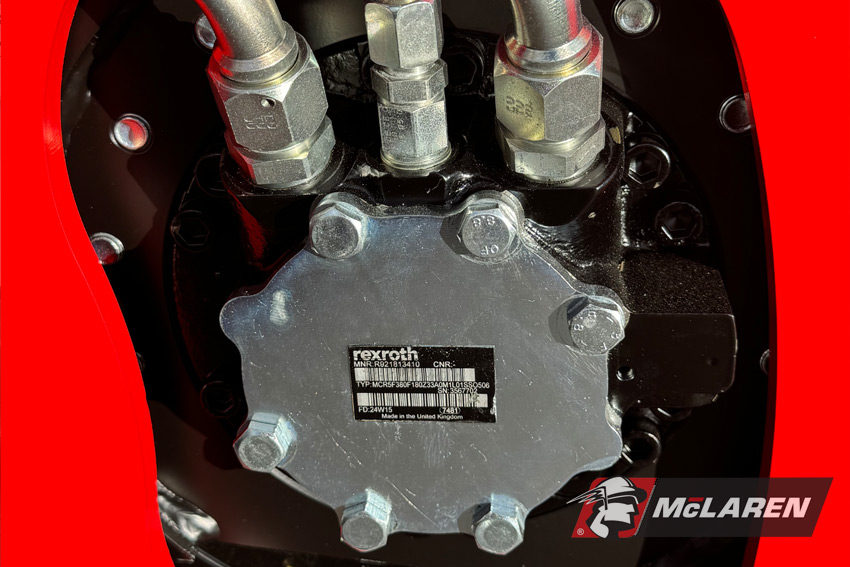

  • High-Performance Bosch Rexroth Piston Motor: Piston motor capable to accommodate machines up to 45gpm providing optimal torque for the operator.

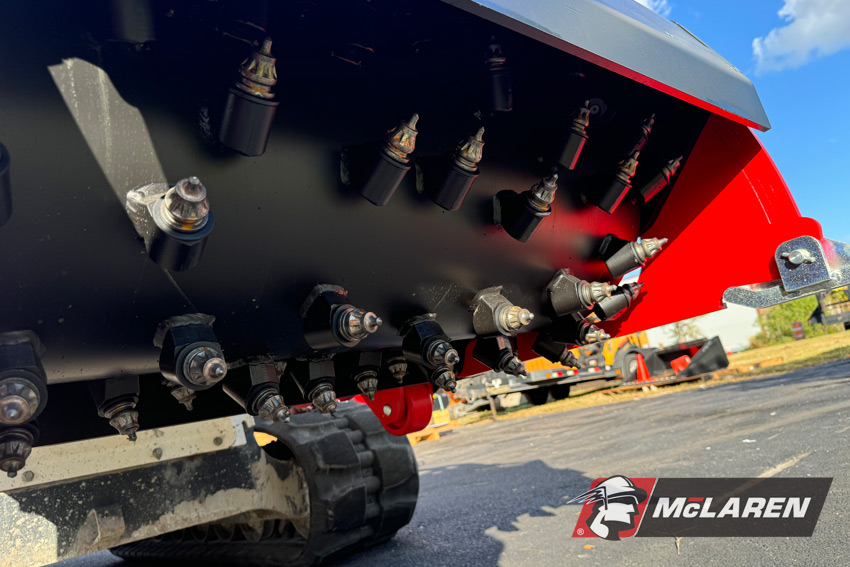

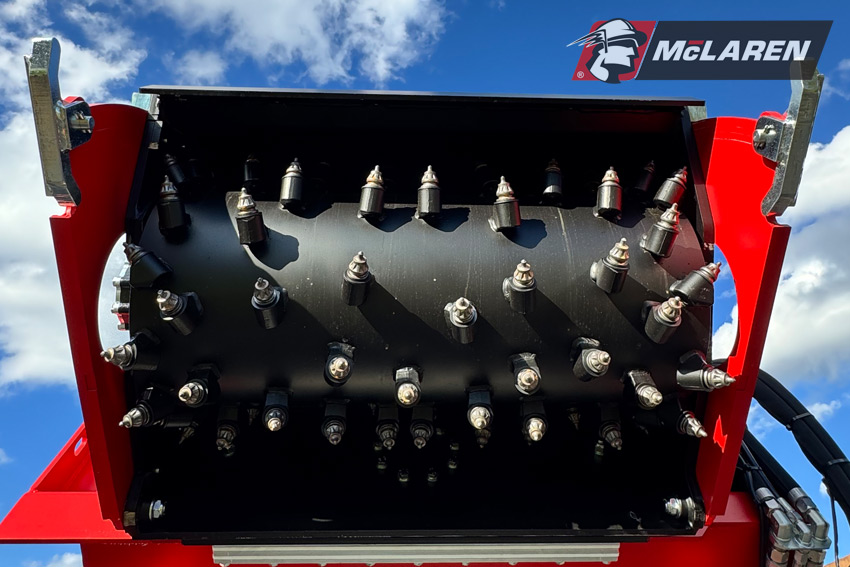

  • Kennametal Performance Picks: Industry leading carbide picks for maximum longevity.
  • Frame and Skid Rollers: 4 points of continuous ground contact for increased stability and reduced vibrations.
  • Tilting Capabilities: Up to 10 degrees of tilt per side allowing versatility in uneven conditions.

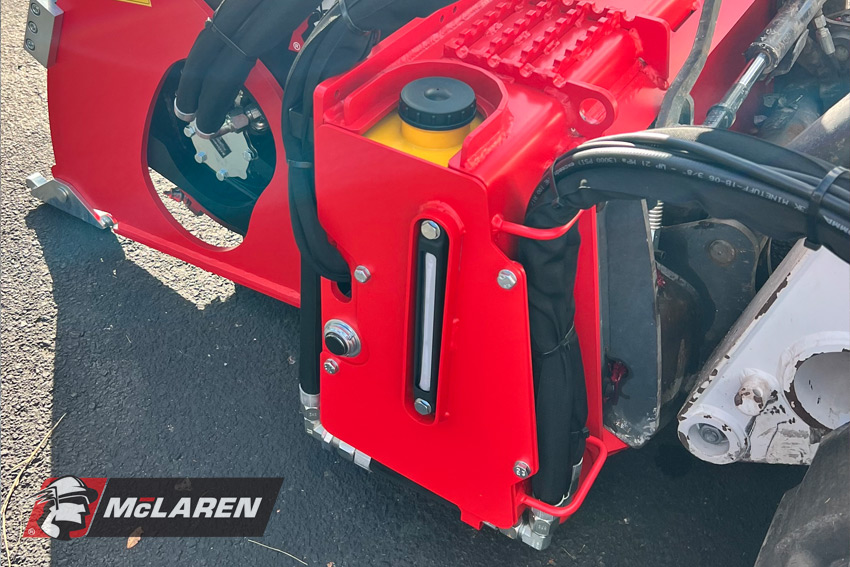

  • Integrated Electronic Water Tank: Manage Dust buildup with 30 gallons of operator-controlled water sprayers. This Water tank is also integrated, giving the operator the ability to conveniently swap machines without needing to set up an external water system.
  • Hydraulic Sideshift: 24” of sideshift allowing operator to mill in a central position or flush with a wall.
  • Maximum Visibility: Low profile construction for reduced vibrations and great visibility during milling.

Cold Planer

Application

  • Asphalt Planing: Mills asphalt and prepare for new asphalt to be laid or repaired.
  • Concrete Milling: Mills concrete pavements for leveling or resurfacing.

What's Included

  • McLaren Skid Steer Cold Planer
  • Universal Skid Steer Mounting Plate
  • Flat Faced Couplers
  • Hydraulic Hoses
  • Owner's Manual

Cold Planer

Specifications

Specifications Model MP16 Model MP18 Model MP39
# of Teeth 48 54 88
Flow Range 12-22 GPM 12-22 GPM 25-41 GPM
Cutting Width 16” 18” 40”
Cutting Depth Up to 5” Up to 5” Up to 6”
SidesShift 24” 24” 24”
Weight 1190lbs 1700lbs 2425lbs
Case Drain Optional Optional Required

Cold Planer

Contact McLaren Industries to Learn More

McLaren’s Skid Steer Cold Planer is just one of the many attachments we manufacture and sell to CTL, MTL, and skid steer customers throughout the country. Let us match you with the best solution for your needs. . Give us a call at (800) 836-0040 or request a quote today.
